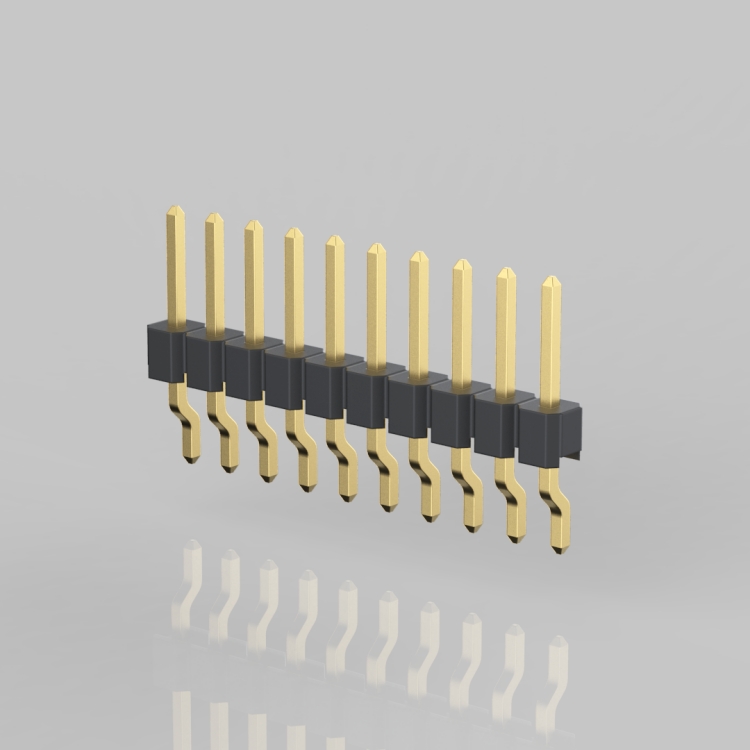

• P101-KG_-XXX/XXX-XX

    P101-KG_-XXX/XXX-XX

    SPECIFICATIONS

    • Current rang: 3 Amps
    • Insulation resistance: 5000 Megohms Min
    • Dielectric Withstanding: AC 1000V
    • Operating Temperature: -40°C~+105°C
    • Max Processing Temp: 260℃ for 3～5 sec Max.
    • Contact Material: Copper Alloy
    • Insulator Material: Polyester,UL94V-0
    • Standard : Nylon-6T
    • Finish: Tin,Gold Plated
    • Standard: Gold Flash all over

    PDF

P101-KG_-XXX/XXX-XX

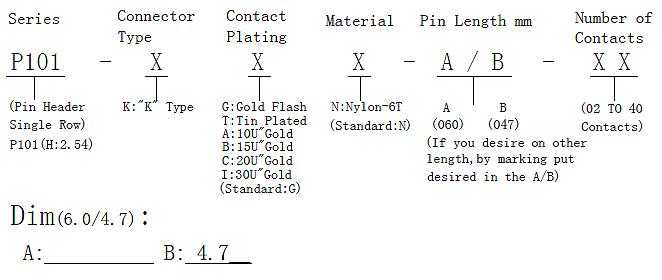

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P101
Connector Type K:K Type
Contact Plating G:Gold Flash
Material N:Nylon-6T
Dim A
Dim B
Number of Contacts
