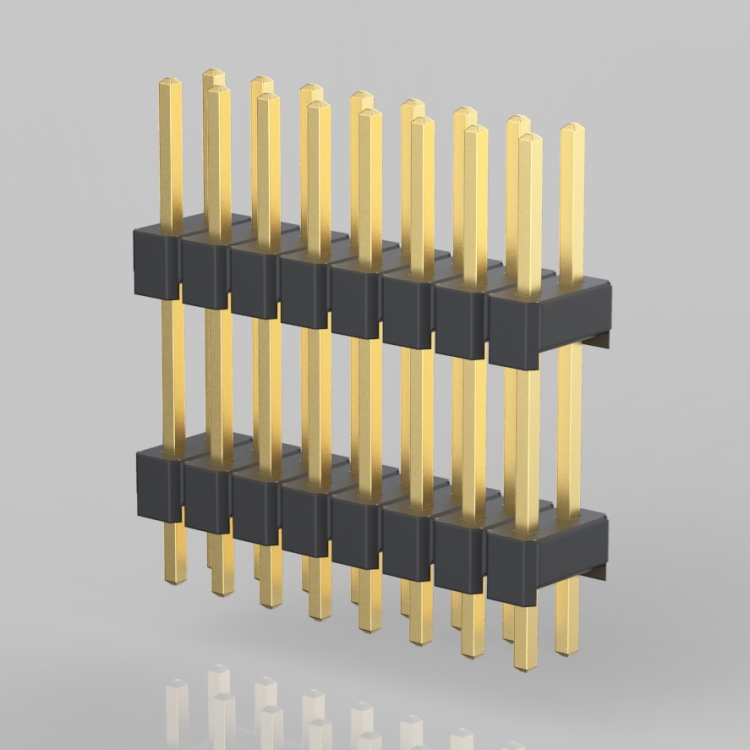

• P22X-SG_-XXX/XXX/XXX-XX

    P22X-SG_-XXX/XXX/XXX-XX

    SPECIFICATIONS

    • Current rang: 3 Amps
    • Insulation resistance: 5000 Megohms Min
    • Dielectric Withstanding: AC 1000V
    • Operating Temperature: -40°C~+105°C
    • Contact Material: Copper Alloy
    • Insulator Material: Polyester,UL94V-0
    • Finish: Tin,Gold Plated
    • Standard: Gold Flash all over

    PDF

P22X-SG_-XXX/XXX/XXX-XX

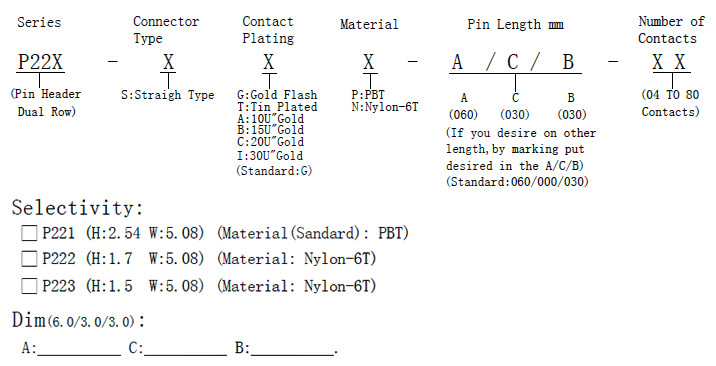

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No P22X
Connector Type S:Straigh Type
Contact Plating G:Gold Flash
Material
Dim A
Dim B
Dim C
Number of Contacts
See Catalog
