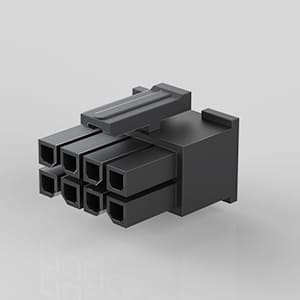

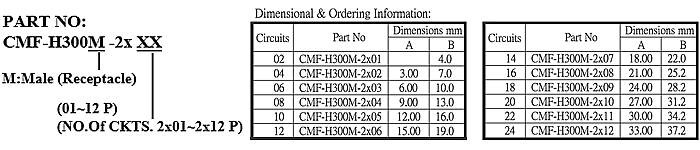

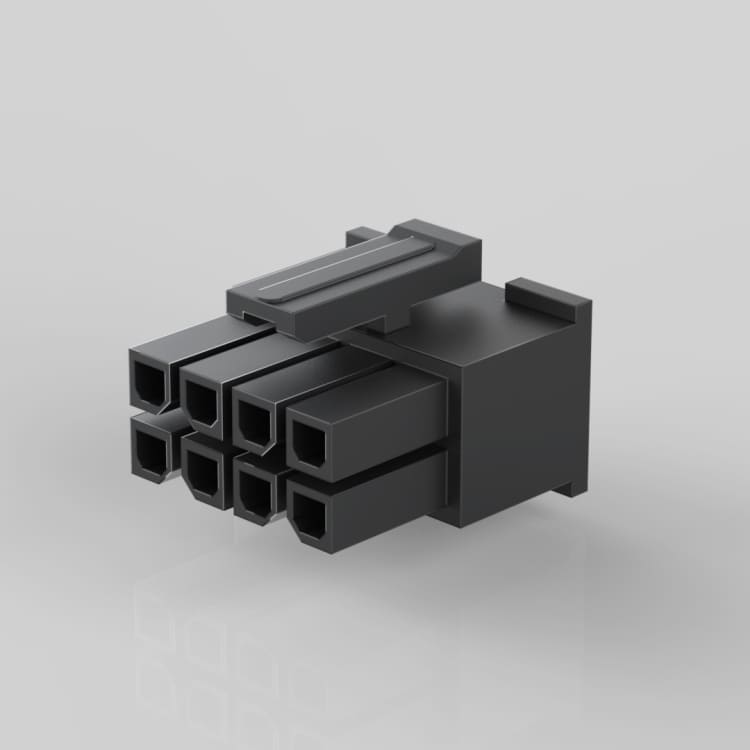

CMF-H300M-2xXX
SPECIFICATIONS
- Material: Polyester,UL 94V-0
- Voltage rating: 250V
- Current Rating: 5A
- Withstand Voltage: 1500V AC/Minute
- Insulation resistance: 1000MΩMin
- Temperature Range: -25°C~+85°C
- Contact Resistance: Initial value/10mΩ max.
- After environmental testing/20mΩ max
- Standard Color: Black
