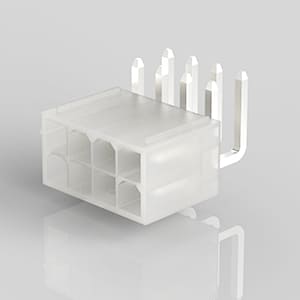

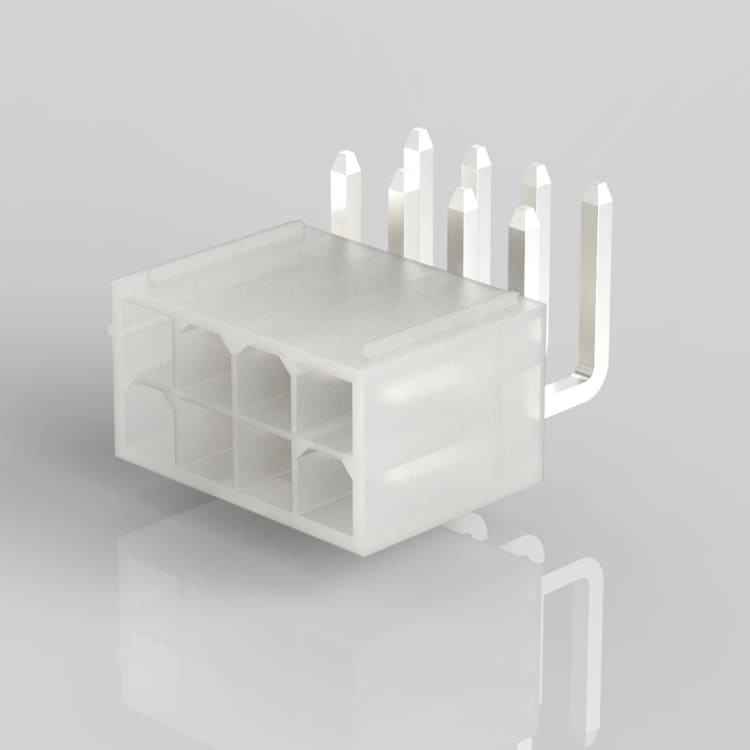

CR-W421-XX
SPECIFICATIONS
- Housing: Nylon-66,UL94V-2
- Contact: Brass, 1.14mm Square Pin/Tin-Plated
- Voltage rating: 600V AC/DC
- Current rating: 9A AC/DC
- Withstand voltage: 1500V AC/minute
- Insulation resistance: 1000MΩMin
- Temperature Range: -40°C~+105°C
- Contact Resistance: Initial value/10mΩmax.
- After environmental testing/20mΩ max.
