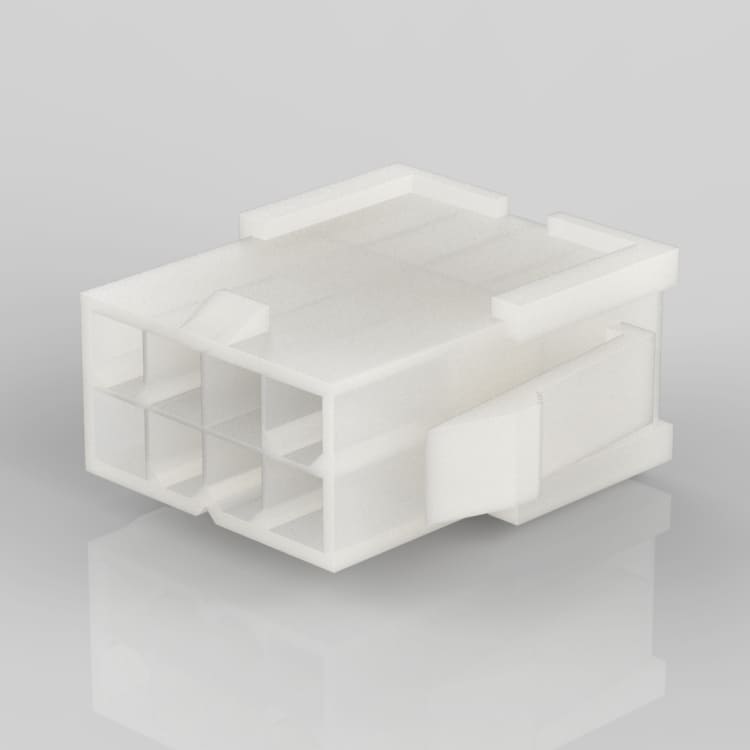

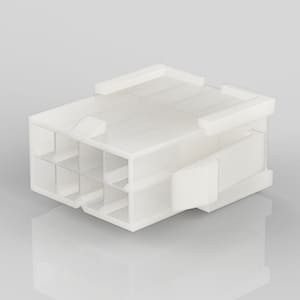

CR-H423F-2xXX(Y)
SPECIFICATIONS
- Material: Nylon-66,UL94V-2
- Voltage rating: 600V AC/DC
- Current rating: 9A
- Withstand voltage: 1500V AC/minute
- Insulation resistance: 1000MΩMin
- Temperature Range:-40°C~+105°C
- Contact Resistance: Initial value/10mΩ max
- After environmental testing/20mΩ max
