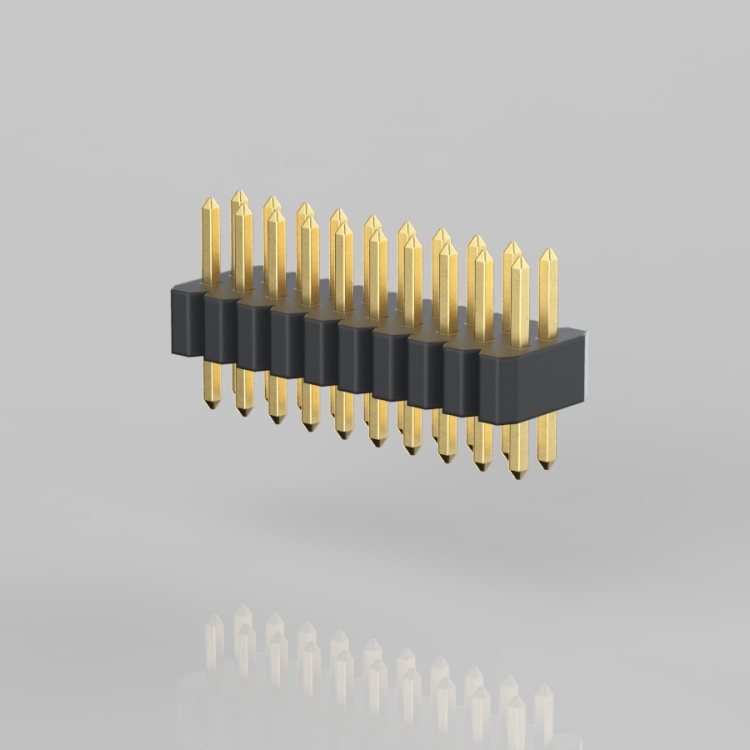

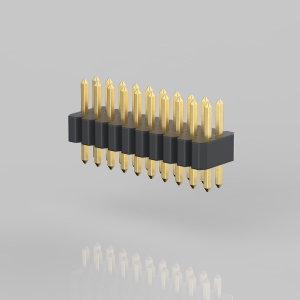

• P801-SGN-XXX/XXX-XX

    P801-SGN-XXX/XXX-XX

    SPECIFICATIONS

    • Current Rating : 0.8 Amp
    • Insulator Resistance : 900 Megohms Min.
    • Dielectric Withstanding : AC 500 V
    • Operating Temperature : -40°C～ +105℃
    • Contact Material : Bronze
    • Insulator Material : High Temperature, Thermoplastic.UL 94V-0
    • Standard : Nylon-6T
    • Finish : Tin,Gold Plated
    • Standard : Gold Flash all over

    PDF

P801-SGN-XXX/XXX-XX

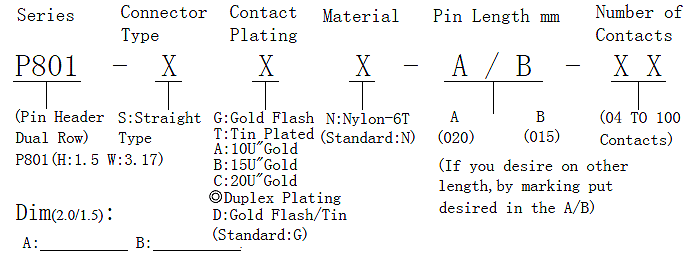

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P801
Connector Type S:Straigh Type
Contact Plating G:Gold Flash
Material N:Nylon-6T
Dim A
Dim B
Number of Contacts
