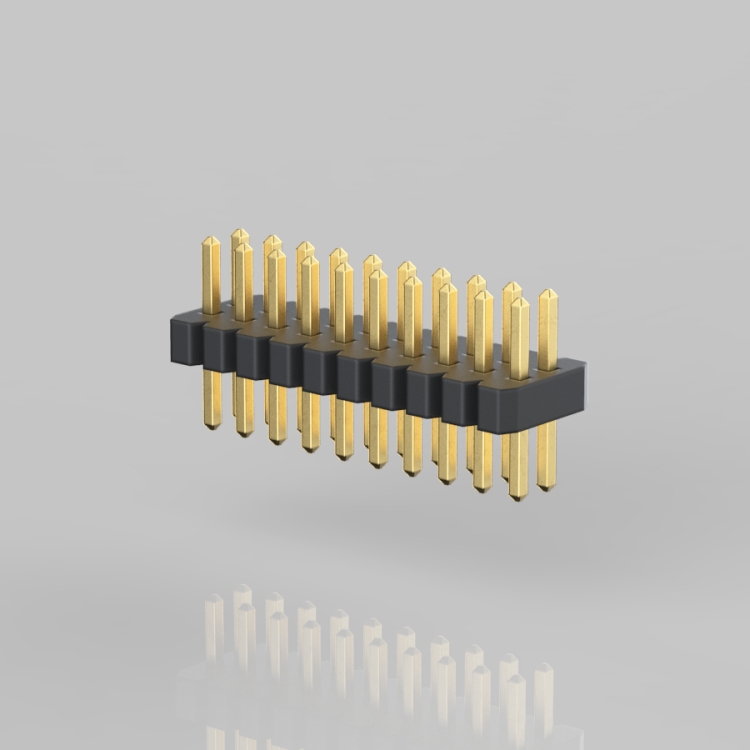

• P802-SGN-XXX/XXX-XX

    P802-SGN-XXX/XXX-XX

    SPECIFICATIONS

    • Current rating: 0.7A AC,DC
    • Voltage rating: 30V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 100MΩMin
    • Withstanding voltage: 200V AC/minute

    PDF

P802-SGN-XXX/XXX-XX

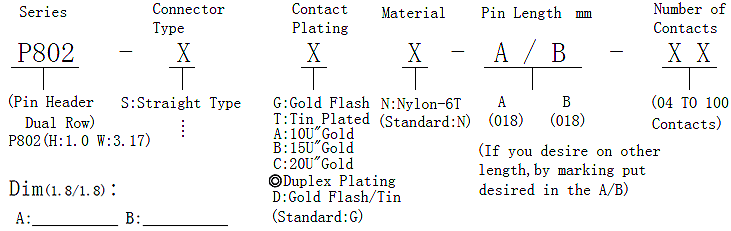

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P802
Connector Type S:Straigh Type
Contact Plating G:Gold Flash
Material N:Nylon-6T
Dim A
Dim B
Number of Contacts
