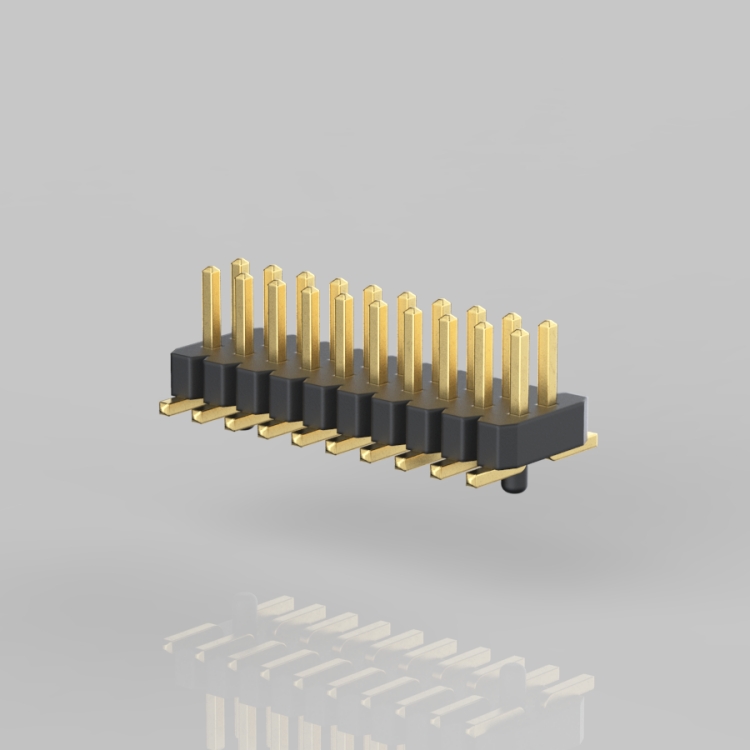

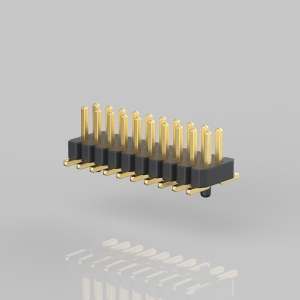

• P804-M1GN-XXX-XX-P

    P804-M1GN-XXX-XX-P

    SPECIFICATIONS

    • Current Rating : 0.8 Amp
    • Insulator Resistance : 900 Megohms Min.
    • Dielectric Withstanding : AC 500 V
    • Operating Temperature : -40°C～ +105℃
    • Max Processing Temp : 260℃ for 3～5 seconds
    • Contact Material : Phosphor Bronze
    • Insulator Material : High Temperature, Thermoplastic.UL 94V-0
    • Standard : Nylon-6T
    • Finish : Tin,Gold Plated
    • Standard : Gold Flash all over

    PDF

P804-M1GN-XXX-XX-P

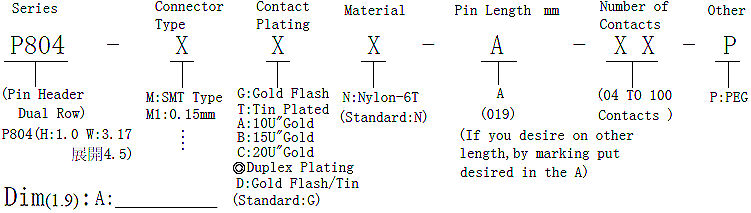

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Series No. P804
Connector Type M1:0.15mm
Contact Plating G:Gold Flash
Material N:Nylon-6T
Dim A
Number of Contacts
Other P:PEG
