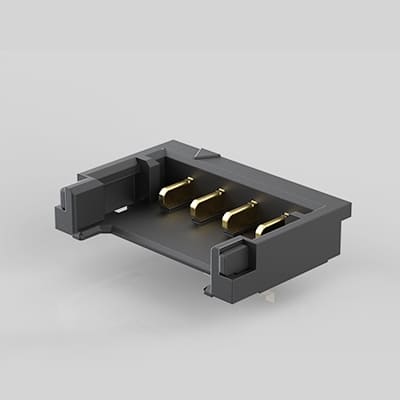

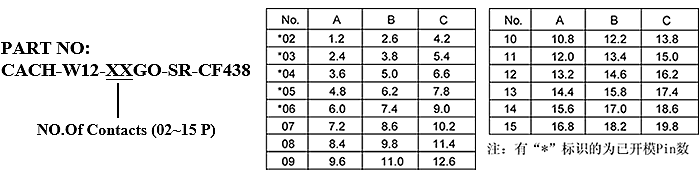

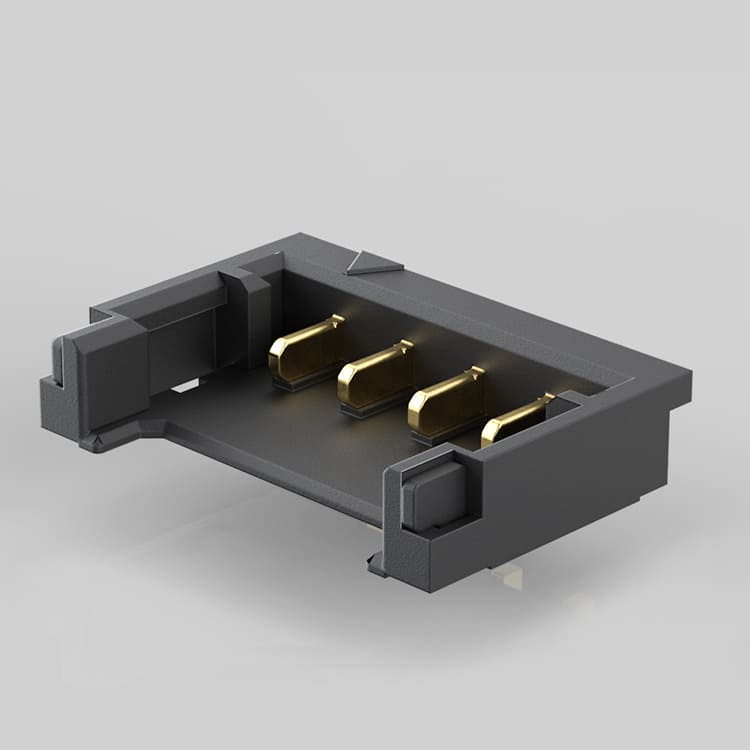

CACH-W12-XXG0-SR-CF438

SPECIFICATIONS

• Current rang: AWG #28 1.5A Max./ AWG #30 1.0A Max.
• Voltage rating : 50V AC,DC Max.
• Insulation resistance : 100MΩMin
• Contact resistance : 20m ohms Max.(per Pin)
• Operating Temperature : -25°C ~ +85℃
• Soldering Temperature : 260℃ for 3～5s Max.
• Insulator Material :High Temperature Thermoplastic.UL 94V-0
• Standard : HTNFR52G30NH BK337 杜邦Nylon6T Black(無鹵)
• Contact Material :Brass
• Fitting Nail :Brass.
• Finish :Tin,Gold or Duplex Plated
• Standard :Gold Flash all over,50u"Min.Nickel under Plating Over All.
• Fitting Nail :50u" Min. Nickel Under Plating Over All/ 100u" Min.Matte Tin Plating Over All
