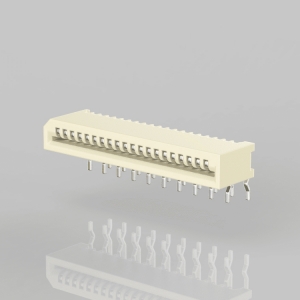

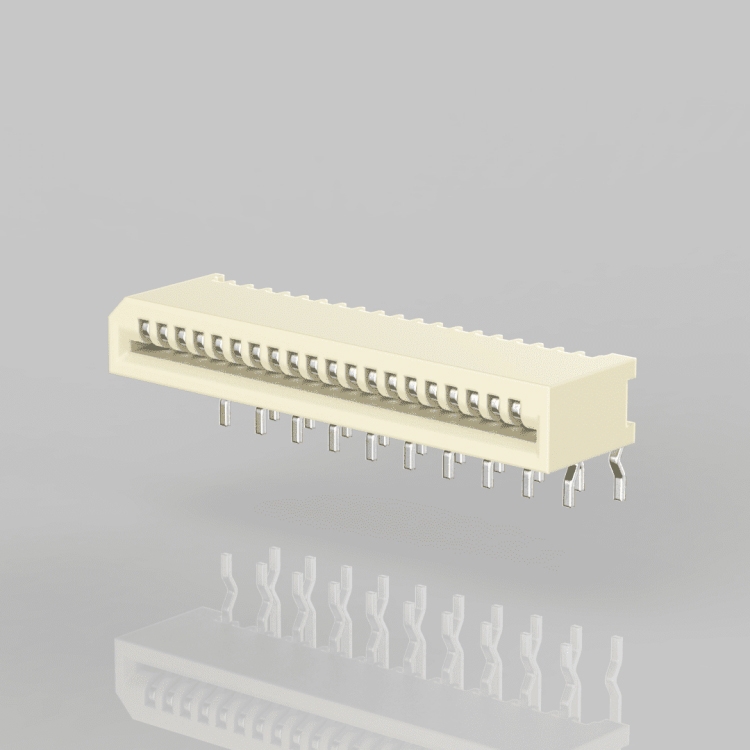

FPC234NXXX-ATT
SPECIFICATIONS
- Poles: 4~30
- Voltage rating: AC, DC, 50V(200HZ)
- Current rating: 0.5A, AC/DC
- Withstand voltage: 500V AC/minutes
- Working Temperature: -25°C~ +85°C
- Insulation resistance: >800MΩ
- Contact resistance: <0.02Ω
- Terminal material: Phosphor Bronze/Tin-Plated
- Housing material: PA46 UL94V-0, Color:Natural
- Packing: Tube
