Wire to Board Connector

2.50mm(0.0984")Series

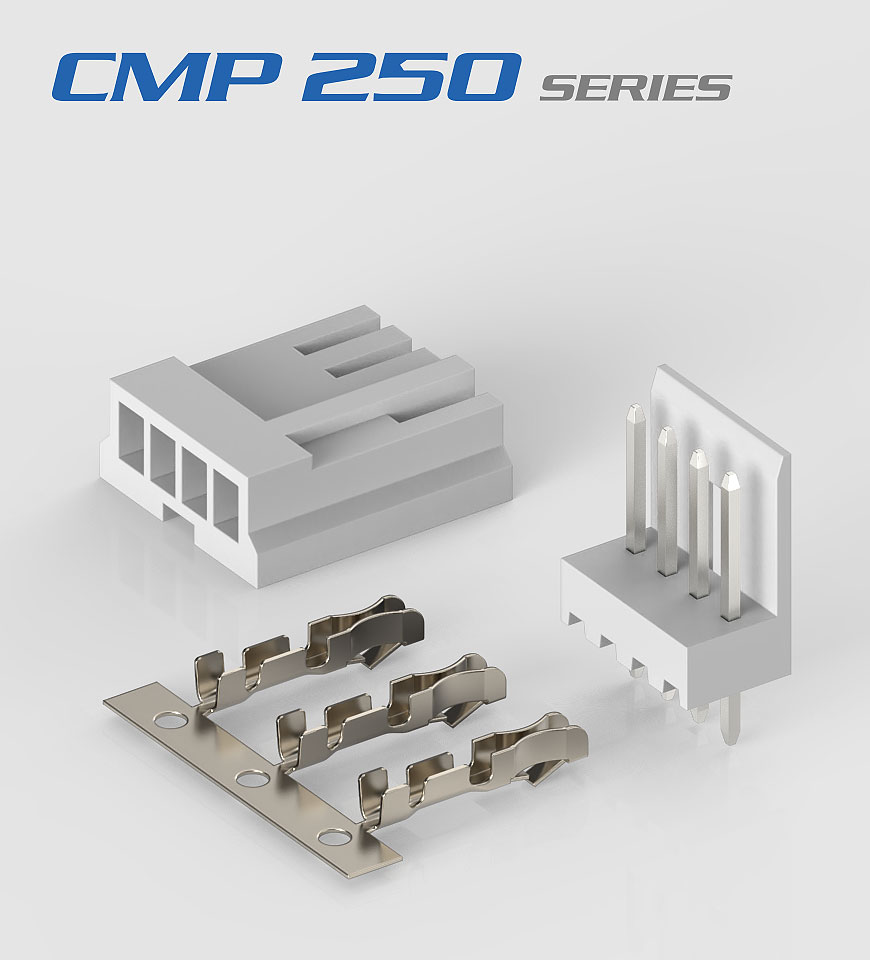

CMP 250 Series
SPECIFICATIONS
- Current rating: 3AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: 25°C~+85°C
- Contact resistance: 20mΩMax
- Insulation resistance: 1000MΩMin
- Withstanding voltage: 800V AC/minute
- Wire Range: AWG #20 to #24

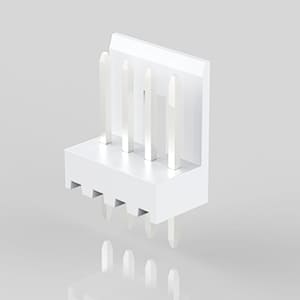

CA-W250-XX
SPECIFICATIONS
- Current rating: 3A, AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: 25°C~+85°C
- Contact resistance: 10mΩMax
- Insulation resistance: 1000MΩMin
- Withstanding voltage: 1000V AC/minute
- Finished: Tin-plated
- Housing Material: Nylon-66,UL94V-0
- Color: Ivory-White
Inquiry Info. PDF

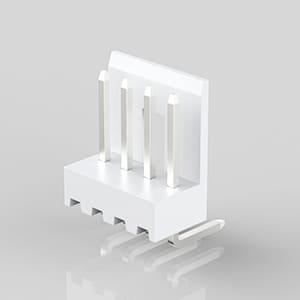

CA-W250R-XX
SPECIFICATIONS
- Current rating: 3A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C~+85°C
- Contact resistance: 10mΩMax
- Insulation resistance: 1000MΩMin
- Withstanding voltage: 1000V AC/minute
- Finished: Tin-plated
- Housing Material: Nylon-66,UL94V-0
- Color: Ivory-White
Inquiry Info. PDF

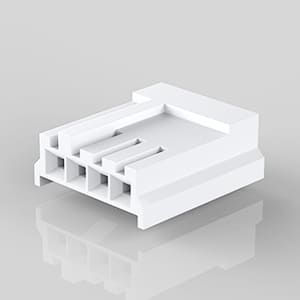

CS4-H1114-XX
SPECIFICATIONS
- Current rating: 3A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C~+85°C
- Contact resistance: 20mΩMax
- Insulation resistance: 1000MΩMin
- Withstanding voltage: 800V AC/minute
- Housing Material: Nylon-66,UL94V-0
Inquiry Info. PDF

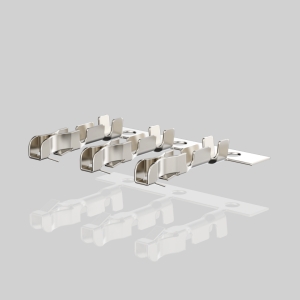

CS4-T1114
SPECIFICATIONS
- Part No: CS4-T1114
- Thickness: 0.2
- Material: Brass
- Wire Range: AWG #20～24
- Insulation O.D:1.8~1.4mm
- Finish: Pre.Tin-Plated
- Qty/reel: 10,000PCS　
Inquiry Info. PDF

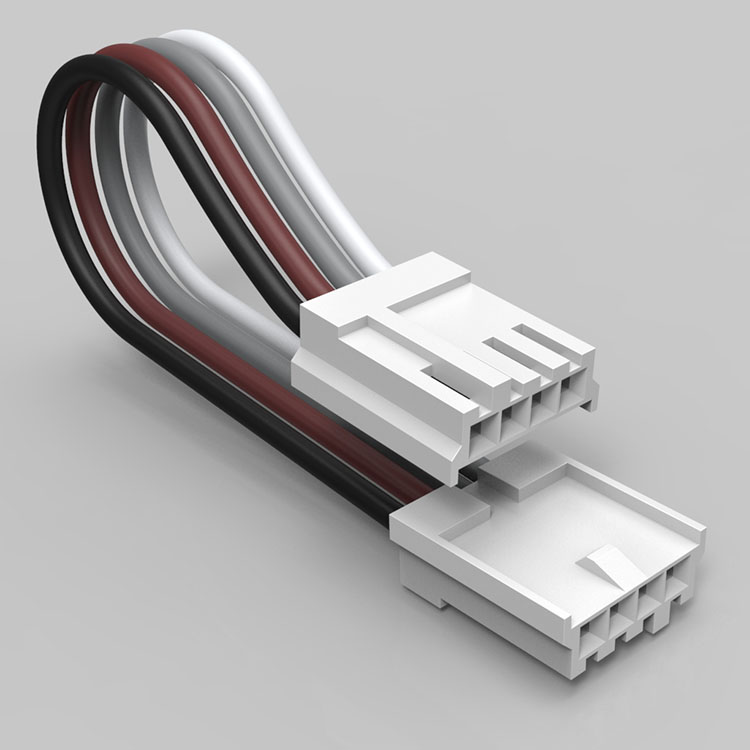

Mating Wiring Harness

Inquiry Info.
