Wire to Board Connector

2.50mm(0.0984")Series

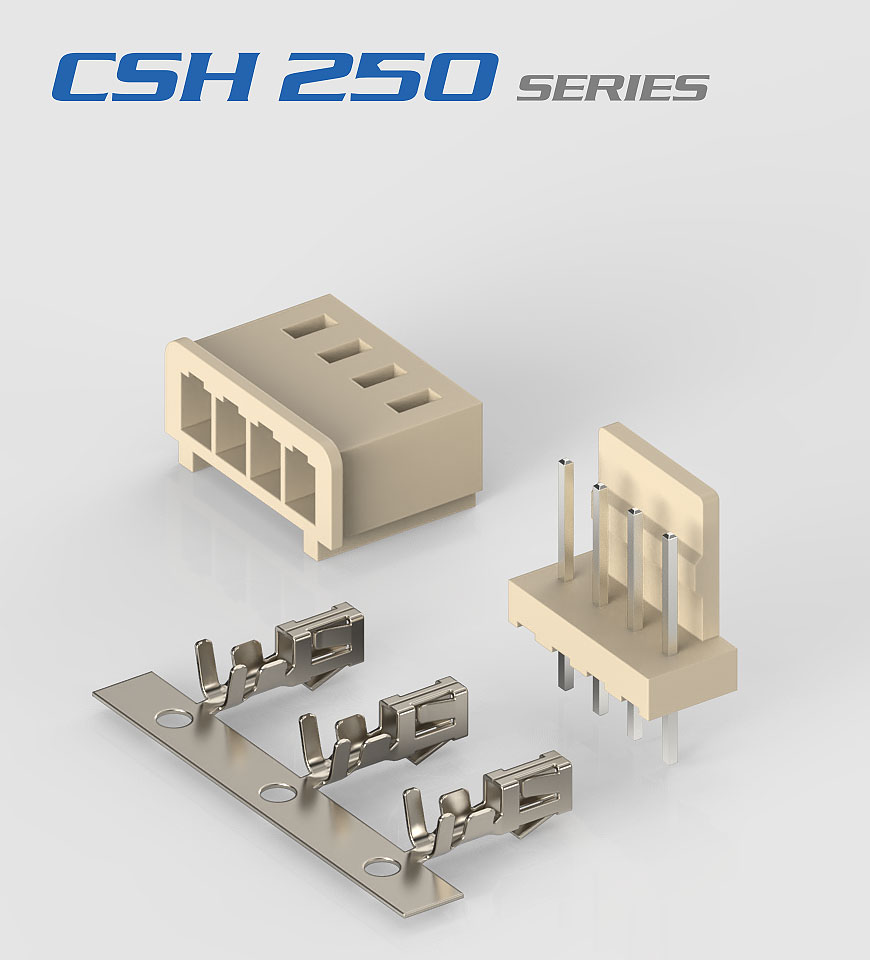

CSH 250 Series
SPECIFICATIONS
- Current rang: 2A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C~+85°C
- Contact resistance: 20mΩMax
- Insulation resistance: 1000MΩMin
- Withstanding voltage: 800V AC/minute
- Wire Range: AWG #24 to #30

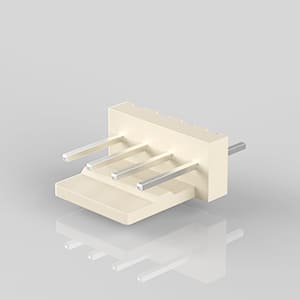

CS-W250-XX
SPECIFICATIONS
- Current rang: 4A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C~+85°C
- Contact resistance: 10mΩMax
- Insulation resistance: 1000MΩMin
- Withstanding voltage: 1000V AC/minute
- Pin Material: Brass
- Finished: Tin-plated
- Housing Material: Nylon-66,UL94V-2
- Color: Beige
Inquiry Info. PDF

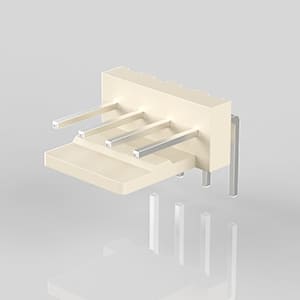

CS-W250R-XX
SPECIFICATIONS
- Current rang: 4A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C~+85°C
- Contact resistance: 10mΩMax
- Insulation resistance: 1000MΩMin
- Withstanding voltage: 1000V AC/minute
- Pin Material: Brass
- Finished: Tin-plated
- Housing Material: Nylon-66,UL94V-2
- Color: Beige
Inquiry Info. PDF

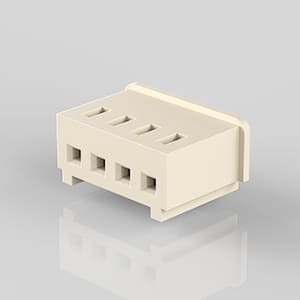

CS-H250-XX
SPECIFICATIONS
- Current rang: 2A AC, DC
- Voltage rating: 250V AC, DC
- Temperature range: -25°C~+85°C
- Contact resistance: 20mΩMax
- Insulation resistance: 1000MΩMin
- Withstanding voltage: 800V AC/minute
- Finished: Tin-plated
- Housing Material: Nylon-66,UL94V-2
Inquiry Info. PDF

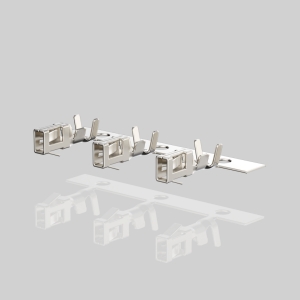

CS-T2501
Specifications & Ordering Information:
- Part No: CS-T2501
- Thickness: 0.2
- Material: Brass
- Wire Range: AWG #24～30
- Insulation O.D:1.4~1.13mm
- Finish: Pre.Tin-Plated
- Qty/reel: 8000 PCS
Inquiry Info. PDF

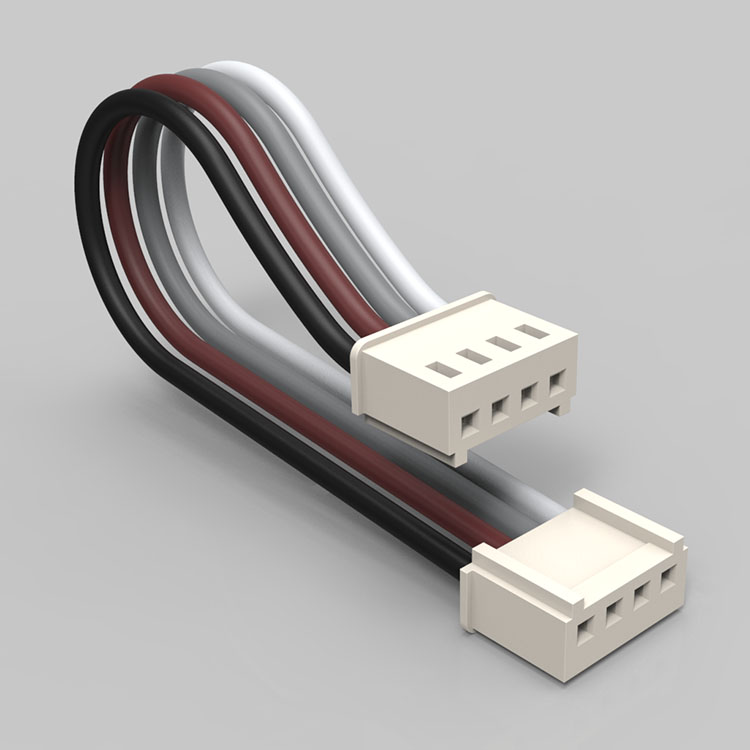

Mating Wiring Harness

Inquiry Info.

Total of 5 results
