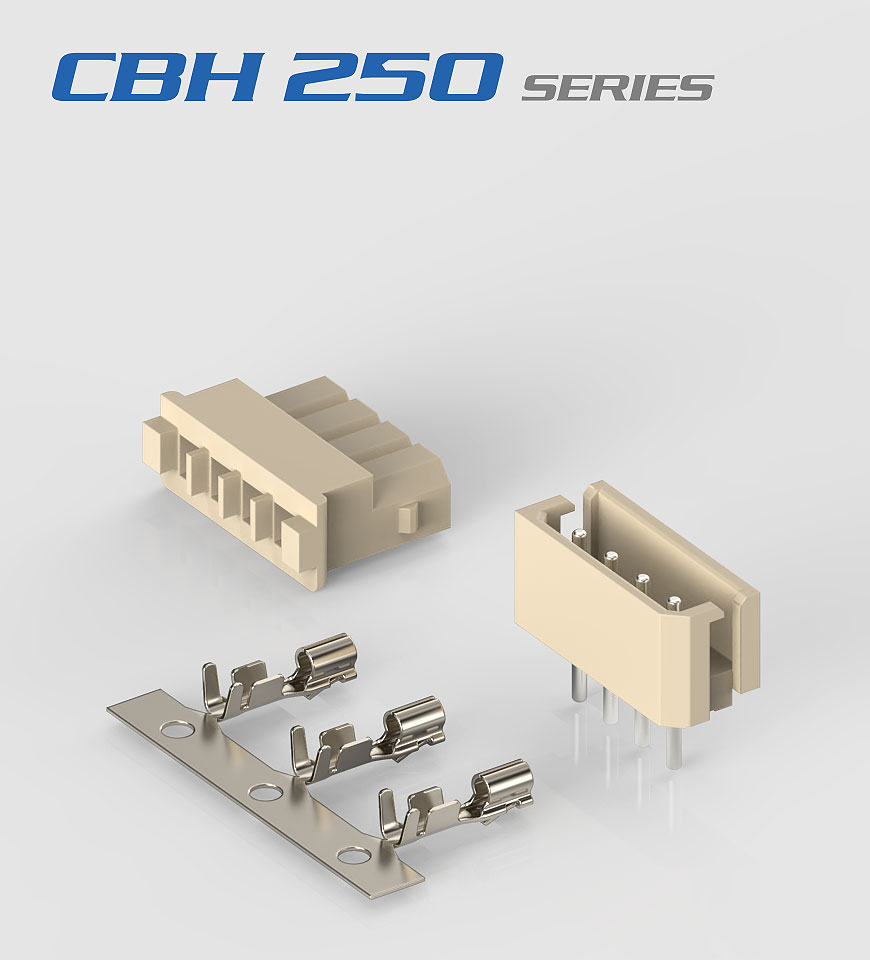

CBH 250 Series

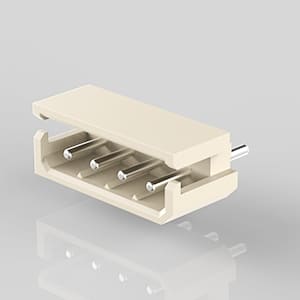

SPECIFICATIONS

• Current rating: 3A AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: -25°C~+85°C
• Contact resistance: 20mΩMax
• Insulation resistance: 1000MΩMin
• Withstanding voltage: 1000V AC/minute
• Pin Material : Brass
• Finished: Tin-plated
• Housing Material: Nylon-66,UL94V-0
• Color: Beige

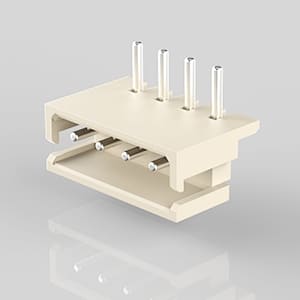

SPECIFICATIONS

• Current rating: 3A AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: -25°C~+85°C
• Contact resistance: 20mΩMax
• Insulation resistance: 1000MΩMin
• Withstanding voltage: 1000V AC/minute
• Pin Material : Brass
• Finished: Tin-plated
• Housing Material: Nylon-66,UL94V-0
• Color: Beige

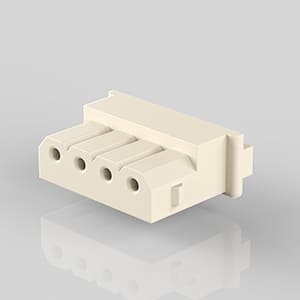

SPECIFICATIONS

• Pitch Between Poles: 2.5mm
• Current rating: 3A
• Voltage rating: 250V
• Contact resistance: Initial Value/10mΩ max, After Environmental testing/20mΩ max.
• Insulation resistance: 1000MΩMin
• Withstanding voltage: 1000V AC/minute
• Applicable Wire : AWG#22 to #28


FEATURES

• Available number of circuits 2 to 15
• Material: Nylon-66,UL94V-0

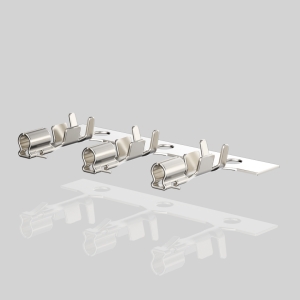

Specifications & Ordering Information:

• Part No: CB-T2501
• Thickness: 0.2
• Material: Phosphor Bronze
• Wire Range: AWG #22～28
• Insulation O.D:1.6~1.2mm
• Finish: Pre.Tin-Plated
• Qty/reel: 10,000 PCS
