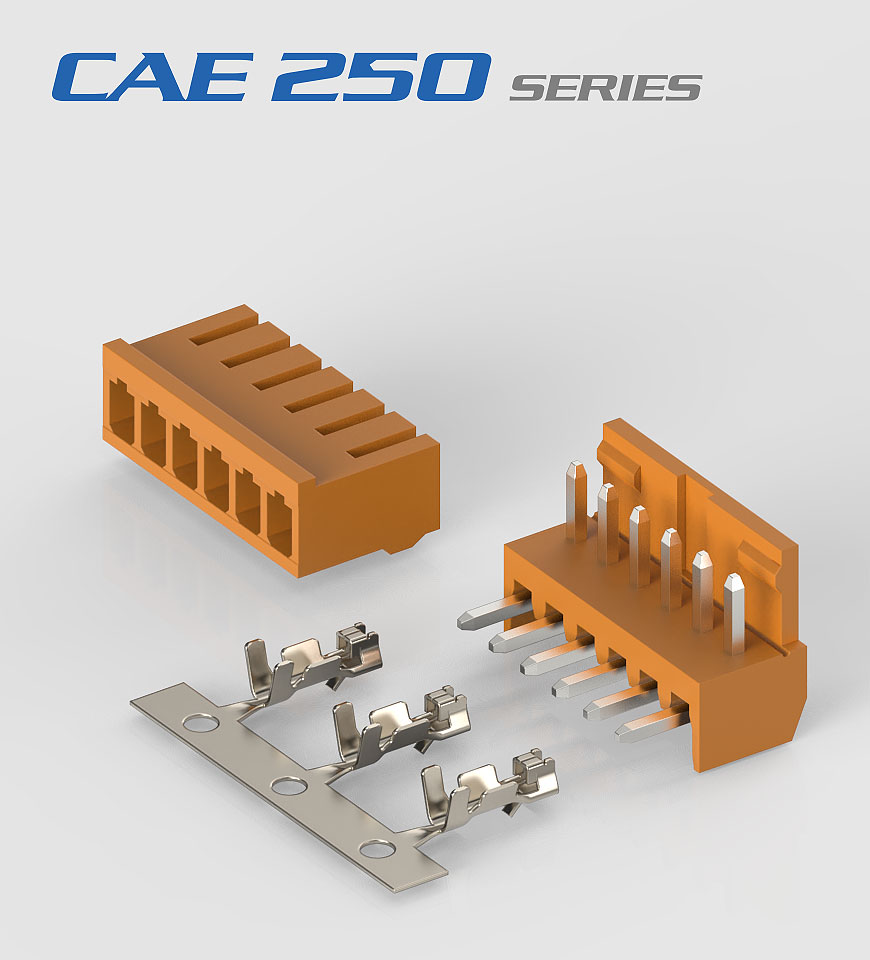

• CAE 250 Series

    CAE 250 Series

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 500V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute
    • Wire Range: AWG #22 to #28

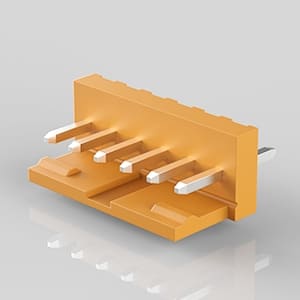

  • CAE-W250-XX-CF194

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 500V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩ Max
    • Insulation resistance: 100MΩ Min
    • Withstanding voltage: 1500V AC/minute
    • Pin Material: Brass/Tin-plated
    • Material: Nylon 66, UL94V-0

    Inquiry Info. PDF

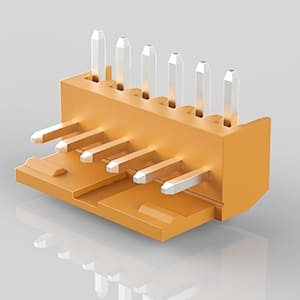

  • CAE-W250R-XX-CF194

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 500V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩ Max
    • Insulation resistance: 100MΩ Min
    • Withstanding voltage: 1500V AC/minute
    • Pin Material: Brass/Tin-plated
    • Material: Nylon 66, UL94V-0
    • Pantone Color: 153C

    Inquiry Info. PDF

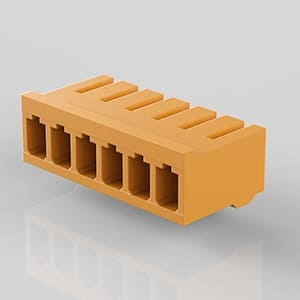

  • CAE-H2501-XX

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 500V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩ Max
    • Insulation resistance: 100MΩ Min
    • Withstanding voltage: 1500V AC/minute
    • Material: Nylon 66, UL94V-0
    • Pantone Color: 153C

    Inquiry Info. PDF

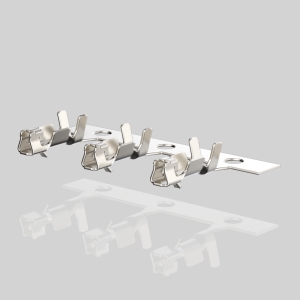

  • CAE-T2501

    Inquiry Info. PDF

  • Inquiry Info.

Total of 5 results
