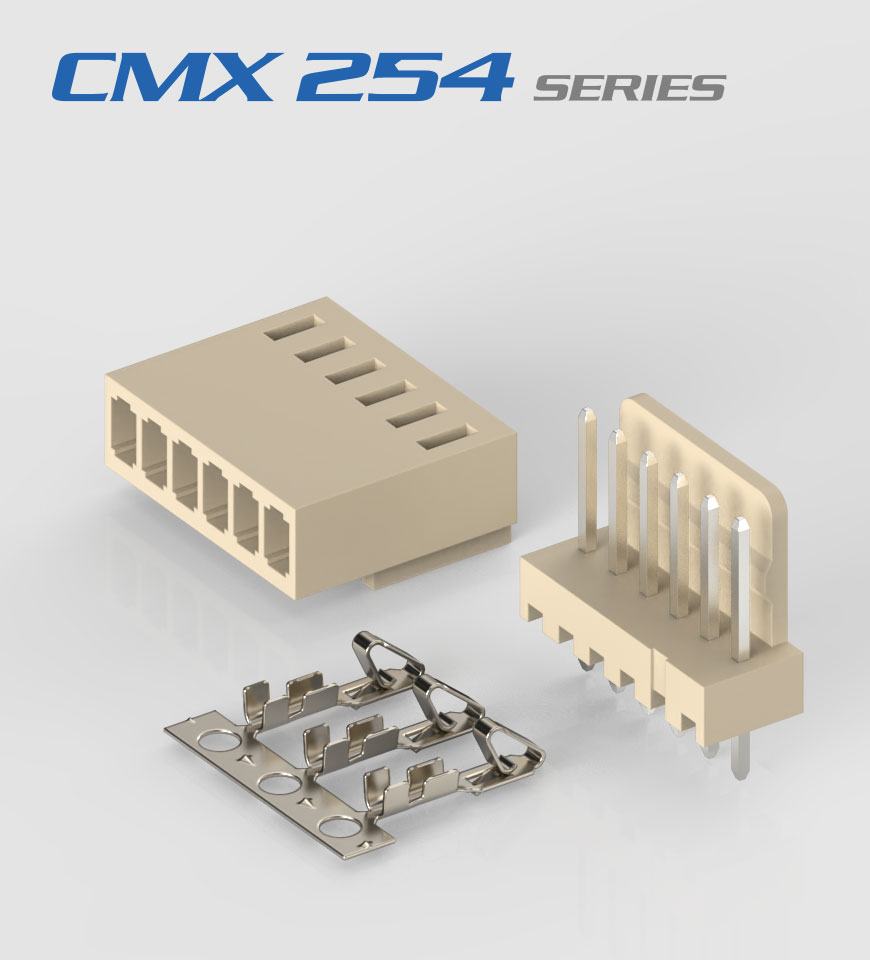

CMX254 Series

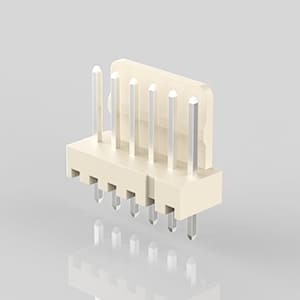

SPECIFICATIONS

• Current rating: 4A AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: -25°C~+85°C
• Contact resistance: 10mΩMax
• Insulation resistance: 1000MΩMin
• Withstanding voltage: 1000V AC/minute
• Finished: Tin-plated
• Housing Material: Nylon-66,UL94V-2
• Color: Beige

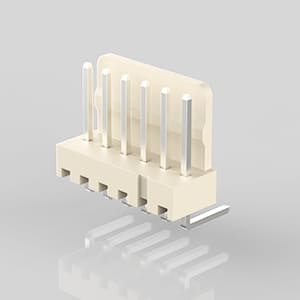

SPECIFICATIONS

• Current rating: 4A AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: -25°C~+85°C
• Contact resistance: 10mΩMax
• Insulation resistance: 1000MΩMin
• Withstanding voltage: 1000V AC/minute
• Pin Material : Brass
• Finished: Tin-plated
• Housing Material: Nylon-66,UL94V-2
• Color: Beige

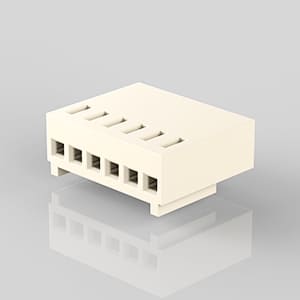

SPECIFICATIONS

• Current rating: 3A AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: -25°C~+85°C
• Contact resistance: 20mΩMax
• Insulation resistance: 1000MΩMin
• Pin Material : Brass / Tin-plated / Gold-plated
• Material: Nylon-66,UL94V-2

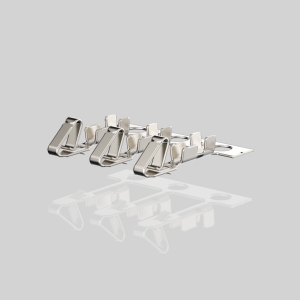

SPECIFICATIONS & Ordering Information

• Part No: CD-T2541
• Thickness: 0.2
• Material:Brass
• Wire Range: AWG#22~30
• Insulation O.D.: 1.6-1.13mm
• Finish: Pre.Tin-Plated
• Part No: CD-T2541PS
• Thickness: 0.2
• Material:Phosphor
• Wire Range: AWG#22~30
• Insulation O.D.: 1.6-1.13mm
• Finish: Pre.Tin-Plated
