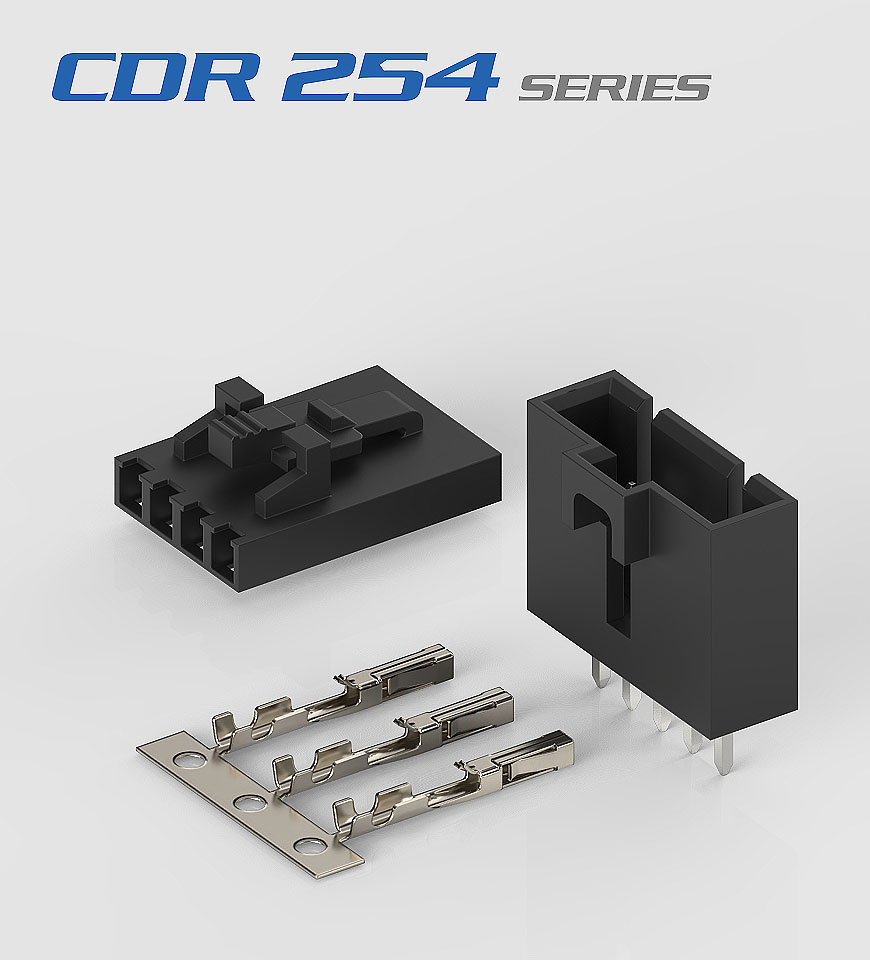

• CDR254 Series

    CDR254 Series

    SPECIFICATIONS

    • Current rating: 3A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 20mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1000V AC/minute
    • Wire Range: AWG #24 to #30

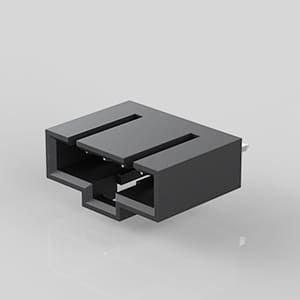

  • CPU-XXS

    SPECIFICATIONS

    • Base: Polyester 94V-0,PBT+30% glass-filled
    • Contact: Brass, Gold-Plated
    • Voltage rating: 250V AC, DC
    • Current rating: 3A
    • Withstanding voltage: 1000V AC/minute
    • Insulation resistance: 1000MΩMin
    • Temperature range: -25°C~+85°C
    • Contact resistance: Initial value/10mΩ max
    • After environmental testing/20mΩ max.

    Inquiry Info. PDF

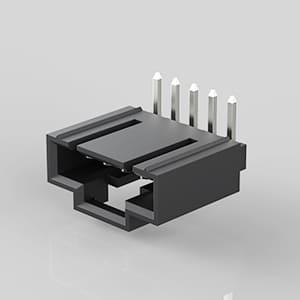

  • CPU-XX

    SPECIFICATIONS

    • Base: Polyester 94V-0,PBT+30% glass-filled
    • Contact: Brass, Gold-Plated
    • Voltage rating: 250V
    • Current rating: 3A
    • Withstanding voltage: 1000V AC/minute
    • Insulation resistance: 1000MΩMin
    • Temperature range: -25°C~+85°C
    • Contact resistance: Initial value/10mΩ max
    • After environmental testing/20mΩ max.

    Inquiry Info. PDF

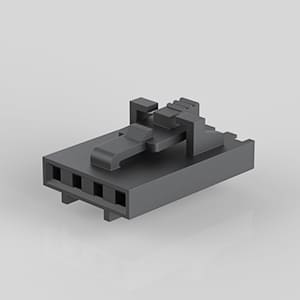

  • CD-H2541-XXT

    Inquiry Info. PDF

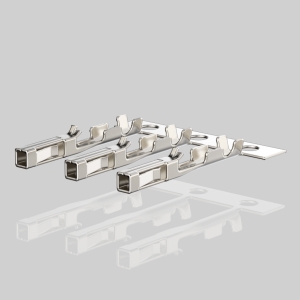

  • CD-T2544

    Inquiry Info. PDF

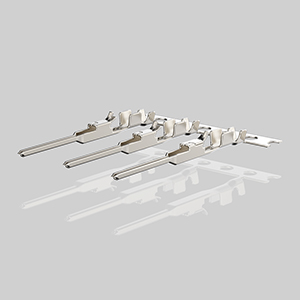

  • CD-T2545M

    Inquiry Info. PDF

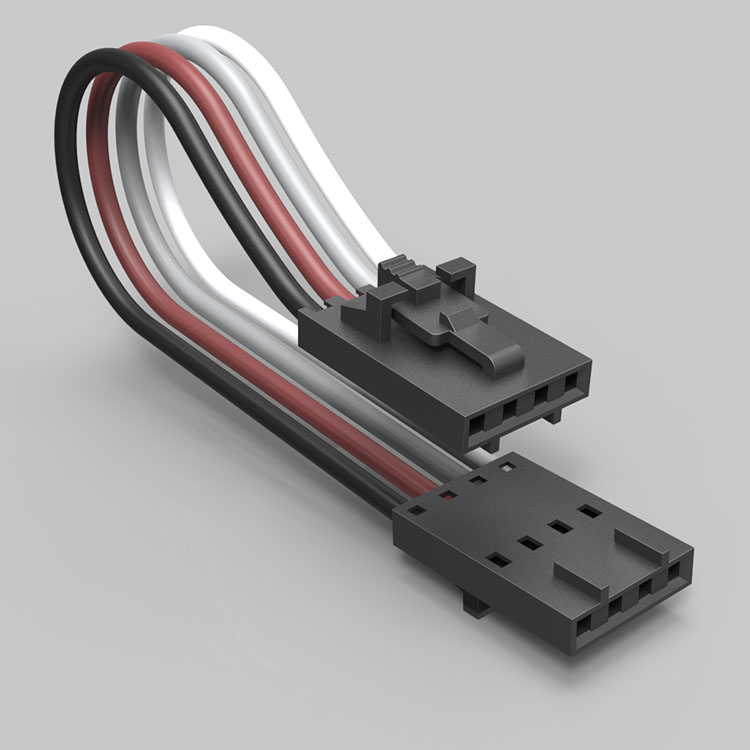

  • Mating Wiring Harness

    Inquiry Info.

Total of 6 results
