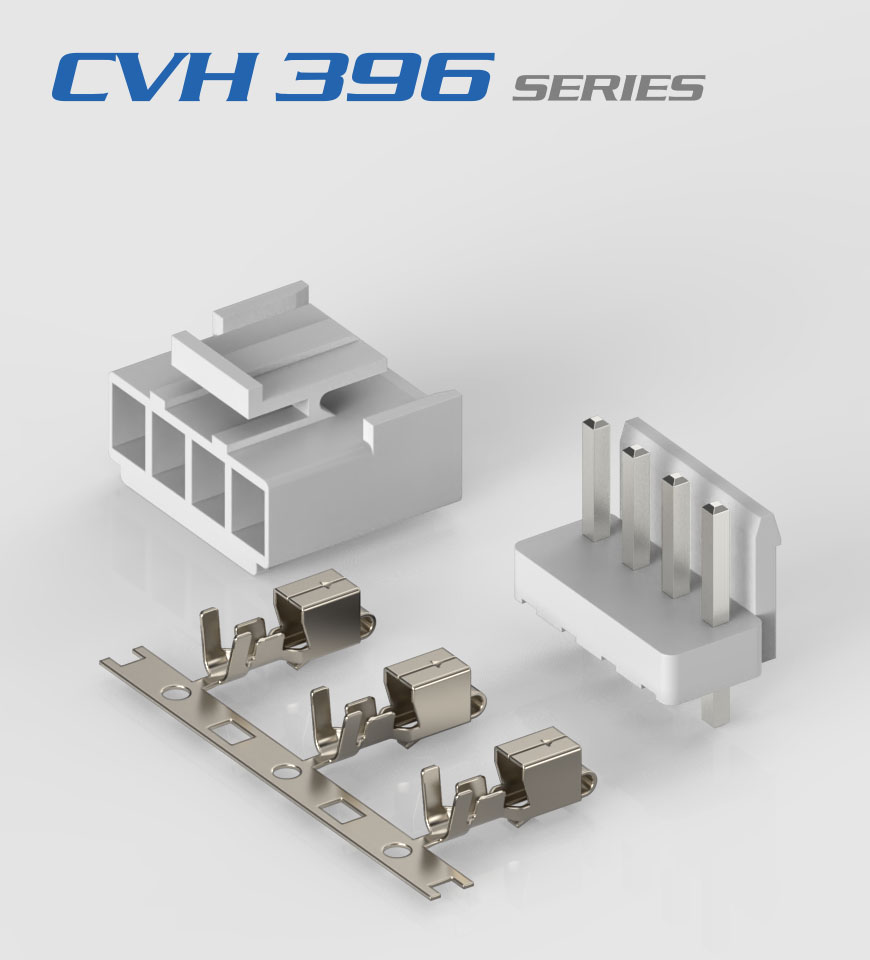

• CVH 396 Series

    CVH 396 Series

    SPECIFICATIONS

    • Current rating: 5A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 10mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute
    • Wire Range: AWG #18 to #22

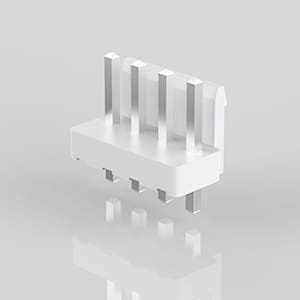

  • CV-W3961-XX

    SPECIFICATIONS

    • Current rating: 7A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 10mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute
    • Pin Material : Brass
    • Finished: Tin-plated
    • Housing Material: Nylon-66,UL94V-0
    • Color: Ivory-white

    Inquiry Info. PDF

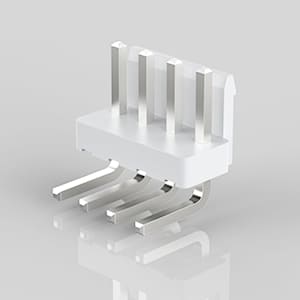

  • CV-W3961R-XX

    SPECIFICATIONS

    • Current rating: 7A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 10mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute
    • Pin Material : Brass
    • Finished: Tin-plated
    • Housing Material: Nylon-66,UL94V-0
    • Color: Ivory-white

    Inquiry Info. PDF

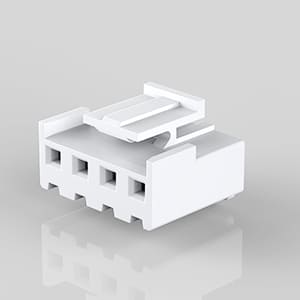

  • CV-H3961-XX_

    SPECIFICATIONS

    • Current rating: 5A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 10mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute
    • Housing Material: Nylon-66,UL94V-0　

    Inquiry Info. PDF

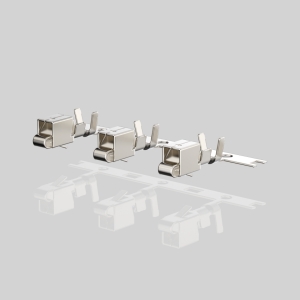

  • CV-T3961

    SPECIFICATIONS & Ordering Information

    • Part No: CV-T3961
    • Thickness: 0.25mm
    • Material:Brass
    • Wire Range: AWG#18~22
    • Insulation O.D.: 2.1-1.6mm
    • Finish: Pre.Tin-Plated
    • Qty/reel: 4000PCS

    Inquiry Info. PDF

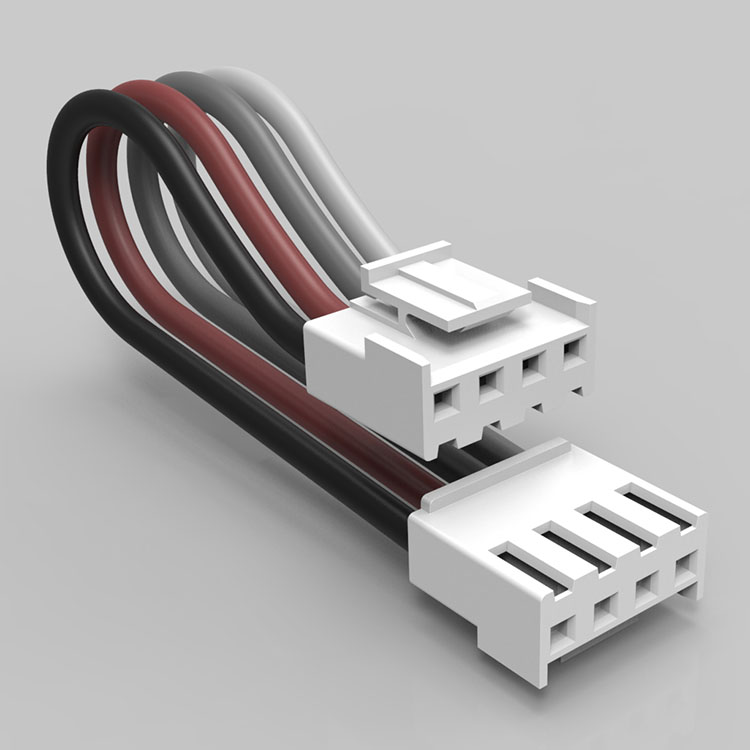

  • Mating Wiring Harness

    Inquiry Info.

Total of 5 results
