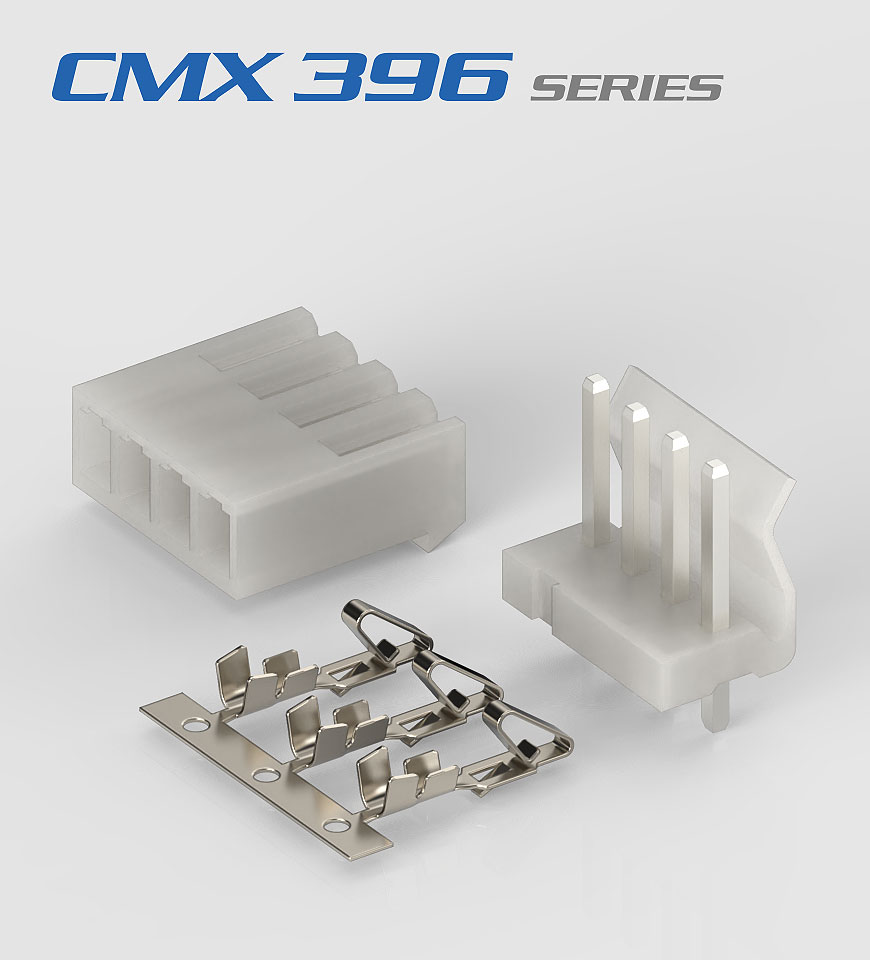

• CMX396 Series

    CMX396 Series

    SPECIFICATIONS

    • Current rating: 5A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 10mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute
    • Wire Range: AWG #18 to #24

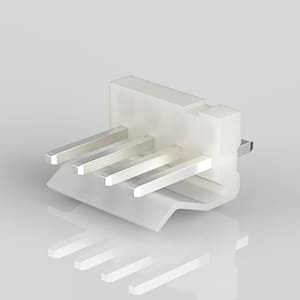

  • CW-W396-XX

    SPECIFICATIONS

    • Current rating: 7A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 10mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute
    • Finished: Tin-plated
    • Housing Material: Nylon-66,UL94V-2
    • Color: Translucence

    Inquiry Info. PDF

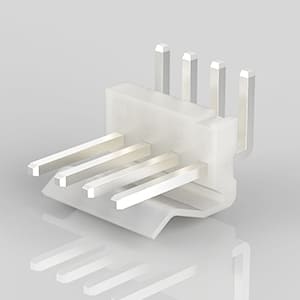

  • CW-W396R-XX

    SPECIFICATIONS

    • Current rating: 7A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 10mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute
    • Pin Material : Brass
    • Finished: Tin-plated
    • Housing Material: Nylon-66,UL94V-2
    • Color: Translucence

    Inquiry Info. PDF

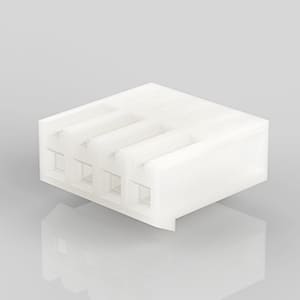

  • CW-H396-XX

    SPECIFICATIONS

    • Current rating: 5A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Insulation resistance: 1000MΩMin
    • Dielectric Withstanding Voltage: 1500V AC/minute
    • Contact resistance: 10mΩMax
    • Material: Nylon-66,UL94V-2

    Inquiry Info. PDF

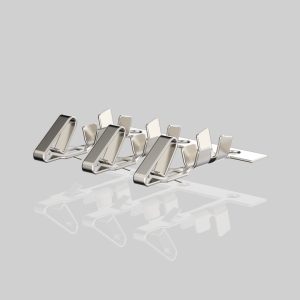

  • CW-T3960-1

    SPECIFICATIONS & Ordering Information

    • Part No: CW-T3960-1
    • Thickness: 0.25
    • Material:Brass
    • Wire Range: AWG#18~#24
    • Insulation O.D.: 2.8-1.4mm
    • Finish: Pre.Tin-Plated
    • Qty/reel: 6000PCS

    Inquiry Info. PDF

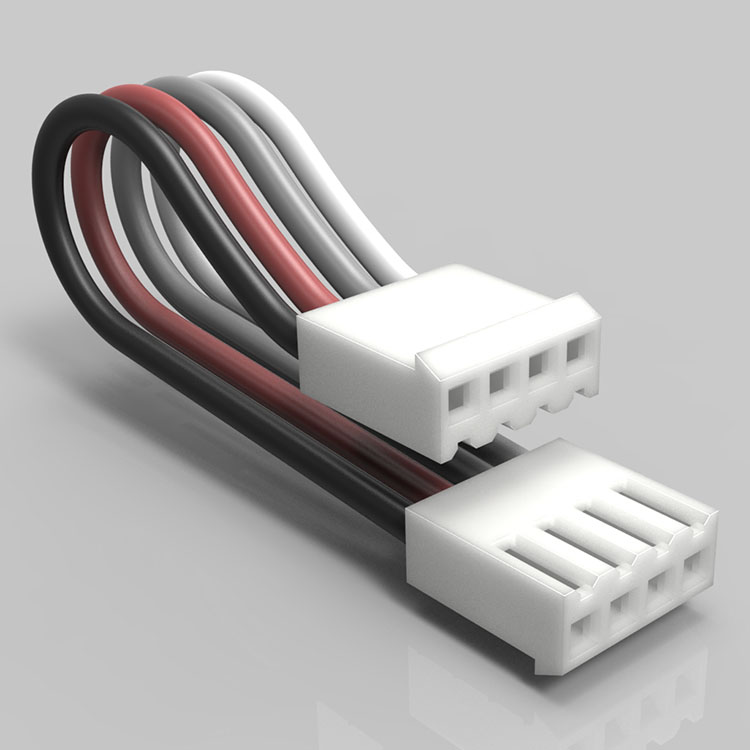

  • Mating Wiring Harness

    Inquiry Info.

Total of 5 results
