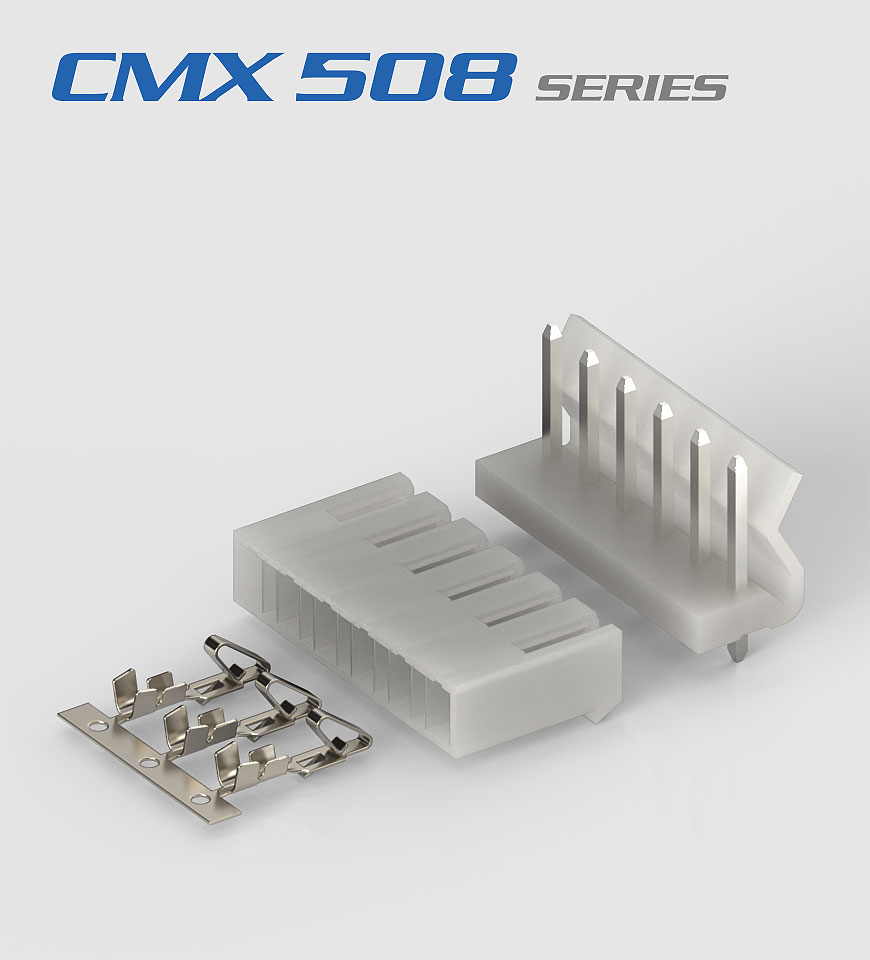

• CMX508 Series

    CMX508 Series

    SPECIFICATIONS

    • Current rating: 5A AC, DC
    • Voltage rating: 250V AC, DC
    • Temperature range: -25°C~+85°C
    • Contact resistance: 10mΩMax
    • Insulation resistance: 1000MΩMin
    • Withstanding voltage: 1500V AC/minute
    • Wire Range: AWG #18 to #24

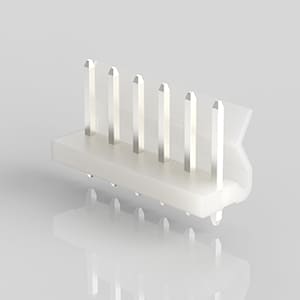

  • CW-W508-XX

    SPECIFICATIONS

    Electrical

    • Voltage rating: 250V(AC)
    • Current rating: 5A
    • Contact resistance: 20mΩ max.
    • Withstanding voltage: 1000V AC/ 1min.
    • Insulation resistance: 1000MΩ/min.

    Material

    • Insulator: Nylon 66, UL94V-2
    • Color: Natural
    • Contact: Brass 1.14mm(0.45")square wire pins
    • Plating: Tin plated
    • Temperature range: -25°C~+85°C

    Inquiry Info. PDF

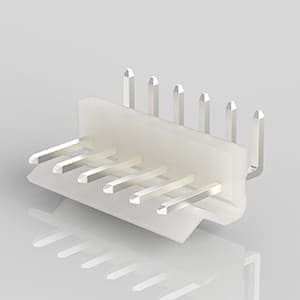

  • CW-W508R-XX

    SPECIFICATIONS

    Electrical

    • Current rating: 5A
    • Voltage rating: 250V(AC)
    • Contact resistance: 20mΩ max.
    • Withstanding voltage: 1000V AC/minute
    • Insulation resistance: 1000MΩ/min.

    Material

    • Insulator: Nylon66, UL94V-2
    • Color: Natural
    • Contact: Brass 1.14mm(0.45")square wire pins
    • Plating: Tin plated
    • Temperature range: -25°C~+85°C

    Inquiry Info. PDF

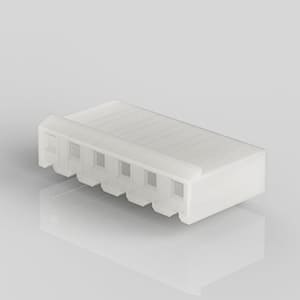

  • CW-H508-XX

    SPECIFICATIONS

    Electrical

    • Current rating: 5A AC, DC
    • Voltage rating: 250V AC, DC
    • Operation Temp: -25°C~+85°C
    • Insulation resistance: 1000MΩ/min.
    • Dielectric withstanding voltage: 1500V AC/min.
    • Contact resistance: 10mΩ/max.

    Material

    • Material: Nylon66, UL94V-2

    Inquiry Info. PDF

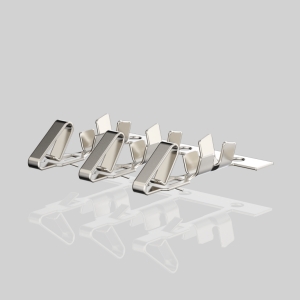

  • CW-T3960-1

    Inquiry Info. PDF

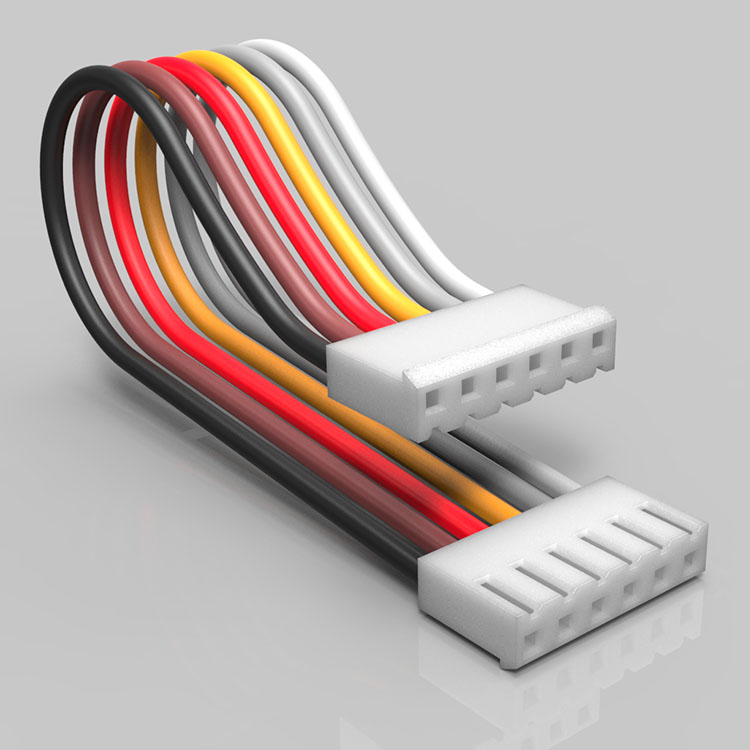

  • Mating Wiring Harness

    Inquiry Info.

Total of 5 results
